Floorplan - 2017 Keystone RV Springdale 287RB
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+15- Our Price: $16,900
-
33ft long
-
7,750 lbs
-
Sleeps 5
-
2 slides
-
Outdoor KitchenKitchen Island

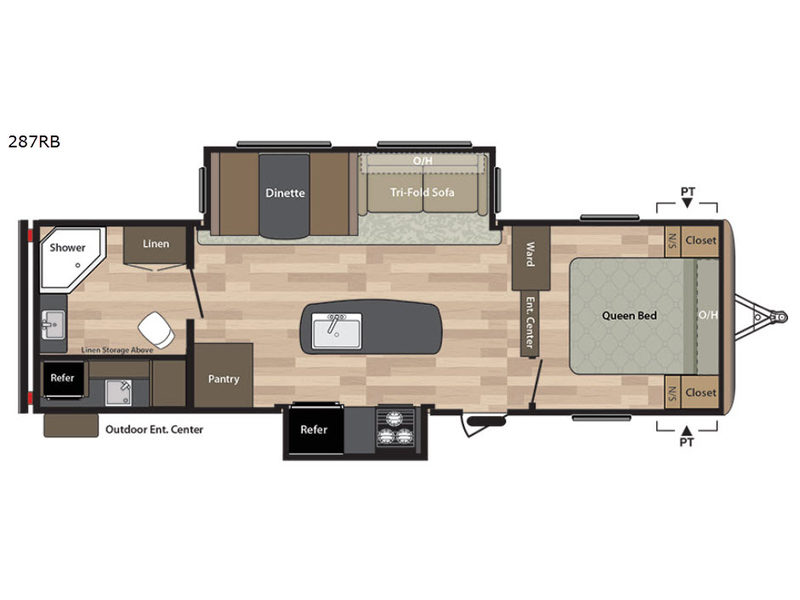

287RB Floorplan
Specifications
| Sleeps | 5 | Slides | 2 |
| Length | 32 ft 10 in | Ext Width | 8 ft |
| Ext Height | 11 ft 3 in | Int Height | 6 ft 10 in |
| Hitch Weight | 935 lbs | Dry Weight | 7750 lbs |
| Cargo Capacity | 1985 lbs | Fresh Water Capacity | 52 gals |
| Grey Water Capacity | 69 gals | Black Water Capacity | 39 gals |
| Tire Size | ST225/75R15D | Furnace BTU | 30000 btu |
| Available Beds | Queen | Refrigerator Type | 2 door |
| Refrigerator Size | 7 cu ft | Cooktop Burners | 3 |
| Number of Awnings | 2 | LP Tank Capacity | 30 |
| Water Heater Capacity | 6 gal | Water Heater Type | Gas/Electric DSI |
| AC BTU | 13500 btu | TV Info | Ext. TV |
| Awning Info | electric | Number of LP Tanks | 2 |
| Shower Type | Angled | VIN | 4YDT28723H3104194 |
Description
This Keystone Springdale travel trailer model 287RB features a rear bath layout, double slides for increased interior space, a convenient kitchen island, plus an outdoor kitchen and entertainment center too!
Step inside to an open concept kitchen and living space featuring dual opposing slides. There is a slide out three burner range and refrigerator to the left of the door, and a pantry off to the side. The kitchen island just off center provides additional prep and counter space, plus it is the location for a large sink.
Opposite the door find a tri-fold sofa and booth dinette slide for plenty of seating and a place to enjoy meals. Each can also be quickly made into sleeping space at night. There is an entertainment center along the interior wall that can easily be viewed from any seating in the room.
To the right of the entry door there is a front bedroom which features a queen size bed. There are nightstands and closets on both sides plus overhead storage, and a wardrobe is near the foot of the bed.
Head to the rear of the unit where you will find a spacious bath which provides an angled shower, toilet, sink, double door linen cabinet just inside the door, and also more storage above the toilet area along the curb wall.
On the outside enjoy a front full pass-through storage compartment for all of your exterior camping gear, and an outdoor kitchen which features a refrigerator and single sink. There is an entertainment center next to the outdoor kitchen for another reason to hang out in the great outdoors!
Features
Standard Features (2017)
Exterior Features (TT East)
- Diamond Plate
- XL Entry Assist Handle
- Powder Coated I-Beam Frame
- Easy Ultralube Axles
- Dual Battery Rack
- 2 Exterior Speakers
- Oversized Pass Thru Storage w/ Light (Select Models)
- Cambered chassis
- Exterior Shower
- E-Z Open Entry Step
- Adjustable Power Awning
- Outside 110 receptacle
- Arctic Package (Select Models)
- Spread Axle (Models w/Slides)
- Full Length Outriggers on Frame
- Two 30 lb. LP Bottles
- King HD Antenna
- Hurricane Straps Reinforced Structure
- LionsHead Nitro Filled Tires
- 96" Exterior width
- Black Tank Flush (Select Models)
- 50 Amp Service w/Detachable Cord (Select Models)
Interior Features (TT East)
- Large Medicine Cabinet
- Full Strutted Storage under Master Bed
- Residential Microwave
- 7 Cu. Ft. Refrigerator
- Ball Bearing Drawer Guides
- High Rise Kitchen Faucet
- 18" Oven w/3 Burner Cooktop
- 12 Volt 55 Amp Converter
- Forced Air DSI 30K BTU Furnace w/Thermostat (Ducted most models)
- Skylight Over Tub/Shower
- 82" Vaulted Ceiling
- 2x3 Floor Construction 12" OC w/5/8th Decking
- 4 1/2” Crowned Roof
- R-7 Insulation-Floor, Roof, Walls
- Pleated Night Shades in Living Area
- Nightstand w/Drawer in Bedroom
- AM/FM Bluetooth CD/DVD Ent. System
- Monitor Panel
- Residential Refrigerator (38BH, 38FL, 38FQ only)
- Reversible Dinette Cushions
- High Impact Acrylic Sink
- "Do More Dinette" Table (Select Models)
- 13,500 BTU Air Conditioner
- 6 Gal. Gas/Electric DSI Water Heater
- Flex Pex Tubing with 10 Year Warranty
- Tub Surround
- RG6 Cable and Satellite Wiring
- 16" on Center Raised Roof Truss System
- 16" on Center Side Walls
Exterior Features (Fifth Wheels)
- Laminated Fiberglass Sidewalls
- XL Entry Assist Handle
- Powder Coated I-Beam Frame
- Easy Ultralube Axles
- Dual Battery Rack
- 2 Exterior Speakers
- Oversized Pass Thru Storage
- Two Heavy Duty Stabilizer Jacks
- Cambered chassis
- Marine Grade Foot Flush Toilet
- E-Z Open Entry Step
- Electric Adjustable Front Landing Gear
- Adjustable Power Awning
- Outside 110 receptacle
- Arctic Package
- Spread Axle (Models w/Slides)
- Full Length Outriggers on Frame
- Two 30 lb. LP Bottles
- King HD Antenna
- Hurricane Straps Reinforced Structure
- LionsHead Nitro Filled Tires
- 96" Exterior width
- 50 Amp Service w/Detachable Cord (Select Models)
- Interior Features (Fifth Wheels)
- Large Medicine Cabinet
- Full Strutted Storage under Master Bed
- Nightstand
- Residential Microwave
- 7 Cu. Ft. Refrigerator
- Ball Bearing Drawer Guides
- High Rise Kitchen Faucet
- 18" Oven w/3 Burner Cooktop
- 12 Volt 55 Amp Converter
- Forced Air DSI 30K BTU Furnace w/Thermostat (Ducted most models)
- Skylight Over Tub/Shower
- 2x3 Floor Construction 12" OC w/5/8th Decking
- 4 1/2” Crowned Roof
- R-7 Insulation-Floor, Roof, Walls
- Pleated Night Shades in Living Area
- AM/FM Bluetooth Soundbar Ent. System
- Monitor Panel
- Reversible Dinette Cushions
- High Impact Acrylic Sink
- "Do More Dinette" Table (Table & Chair Option Available)
- 13,500 BTU Air Conditioner
- 6 Gal. Gas/Electric DSI Water Heater
- Flex Pex Tubing with 10 Year Warranty
- Tub Surround
- RG6 Cable and Satellite Wiring
- 16" on Center Raised Roof Truss System
- 16" on Center Side Walls
Construction Features (TT West)
- 2 - 30# LP Bottles w/auto change over
- Manual Stabilizer Jacks (4)* (non SSR floorplans)
- Power Stabilizer Jacks (SSR Models Only)
- Spread Axle (models w/Slides)
- E-Z Open Entry Step
- Radial Tires
- 13.5K Ducted A/C (N/A 179, 189, 201, 202, 212)
- Tub Surround
- 2x3 Floor Construction 12” OC with 5/8ths Decking
- 60 Gallon Fresh Water Tank
- One Piece Extruded I-Beam
- Pre-Drilled & Screwed Residential Cabinetry
- Solar Prep
- Cambered Chassis
- Strutted Entry Door
- 16” on Center Side Walls
- 16” on Center Raised Roof Truss System
- R-7 Insulation-Roof, Walls
- Fully Enclosed & Heated Underbelly (Models w/Slides)
- Diamond Plate
- Tinted Safety Glass
- Roof Ladder (SSR Floorplans)
- Dynaspan Decking w/25 Year Warranty
- R-20 Floor (Arctic Package Only)
- Easy Ultralube Axles
- Dual Battery Rack
- LED Light in Pass Thru
- Backed for Ladder (N/A 220, 240)
Entertainment Features (TT West)
- 2 Exterior Speakers
- 2 Interior Speakers
- AM/FM/CD/DVD Bluetooth MP3 Player
- Cable and Satellite Prep
- Exterior TV Bracket (SSR FPs)
Kitchen Features (TT West)
- High Impact Acrylic Sink
- Steel Ball Bearing Drawer Guides
- Residential Lighting in Slide
- Spice Rack below sink
- 22” Oven with 3 Burner Cooktop
- 6.2 cu. ft. 110V/LP Fridge
- Microwave
- Do More Dinette Table (Except 179, 189, 220, 260)
- Vented Range Hood w/Light
- Sink Cover
- Stainless Steel appliances
- Outside Shower
- Fabric Pleated Night Shades in Living Area
Bed Bath & More (TT West)
- Skylight Over Tub/Shower
- Forced Air DSI Furnace w/Thermostat
- 6 Gal. Gas/Electric DSI Water Heater
- 55 amp Converter
- Jack Knife Sofa Bed (N/A 179, 202, 212, 258)
- Tri-Fold Sleeper Sofa (SSR Models)
- RG6 Cable and Satellite Wiring
- Fully Strutted Storage Under Master Bed
- Reversible Dinette Cushions
- Laundry Chute
- Water Heater Bypass
- Porcelain Foot Flush Toilet
- Adjustable Power Awning w/LED Lights
- XL Entry Assist Handle
- Outside TV Hookup (N/A 225)
- Black Tank Flush
- Large Medicine Cabinet
- Monitor Panel
- Flex Pex Tubing with 10 Year Warranty
- LED Overhead Lighting
Safety
- Safety chains
- Electric brakes
- L.P. gas detector
- Fire extinguisher
- Tinted safety glass
- Emergency brake-away switch
- Carbon monoxide detector
- Smoke detector
- GFI electrical outlets
Options
TT (East)
- Aluminum Wheels
- Spare Tire and Carrier
- Tri-Fold Sleeper Sofa
- LED TV w/ Telescopic Arm & Bracket
- Freestanding Dinette
- 15,000 BTU A/C
- Fifth Wheel
- Aluminum Wheels
- Spare Tire and Carrier
- Tri-Fold Sleeper Sofa
- LED TV w/ Telescopic Arm & Bracket
- Freestanding Dinette
- 15,000 BTU Air Conditioner
TT (West)
- Power Tongue Jack
- Aluminum Rims
- LED Television
- 15K BTU A/C
- Spare Tire
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
